Sand and gravel aggregates are essential building materials for construction projects, and their quality greatly affects the final quality of the project. Currently, most high-quality sand and gravel aggregates on the market are produced from processed pebbles. However, pebbles are very large and must undergo specific processing before they can be used in construction projects. One common piece of equipment for breaking large pebbles into smaller pieces is the pebble jaw crusher. There are many types and models of jaw crushers. So, which ones can achieve a production capacity of 400 tons per hour? What is their approximate price?

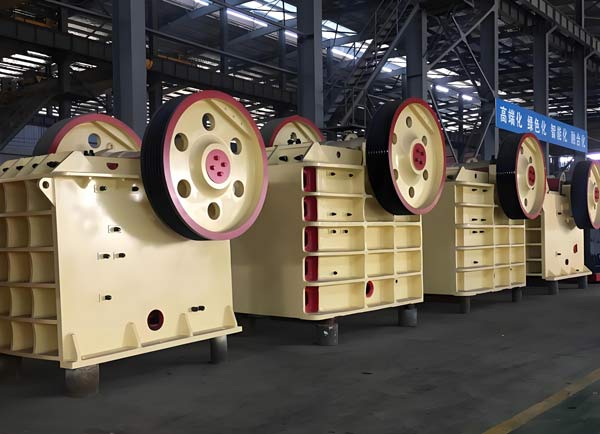

What are the specifications and models of a 400-ton-per-hour jaw crusher for pebbles?

In the pebble processing flow, the main function of a jaw crusher is to coarsely crush the raw materials, i.e., to produce larger-sized stones. There are three series of jaw crushers for pebbles with a capacity of 400 tons per hour: the PE series, the HD German-style series, and the CJ European-style series. Specific specifications and models are as follows:

PE Series: Among the PE ordinary jaw crusher series, the cobblestone jaw crushers that can reach 400 tons per hour include PE-900×1200, PE-1000×1200, and PE-1200×1500. Their maximum feed particle sizes are 750mm, 850mm, and 1020mm, respectively, and the finished product particle sizes range from 95-165mm, 195-265mm, and 150-350mm, respectively. Their total weights are 52 tons, 55 tons, and 100.9 tons, respectively, and their motor powers are 8p110kw, 8p110kw, and 6p160-220kw, respectively. Their output ranges are 220-450 tons per hour, 315-500 tons per hour, and 400-800 tons per hour, respectively.

HD German Version Series: Among the new energy-saving German version cobblestone jaw crushers, the models and specifications that can reach 400 tons per hour are HD110, HD125, and HD145. Their maximum feed particle sizes are 750mm, 900mm, and 950mm, respectively, and the finished particle size ranges are 100-200mm, 125-225mm, and 127-275mm, respectively. The motor power is 6p132kw, 8p160kw, and 8p200kw, respectively, and the processing capacity is 220-510t/h, 280-650t/h, and 360-910t/h, respectively.

CJ European Series: The CJ environmentally friendly and energy-saving European series cobblestone jaw crushers include five specifications: CJ96, CJ100, CJ110, CJ125, and CJ145, all capable of meeting the requirement of 400 tons per hour. Their maximum feed particle sizes are 490mm, 640mm, 720mm, 800mm, and 930mm, and the finished product particle size ranges are 60~175mm, 70~200mm, 70~200mm, 100~250mm, and 125~ The feed inlet is 275mm thick and comes with motors of 90KW, 110KW, 160KW, 160KW, and 200KW. The feed inlet sizes are 930×580mm, 1000×760mm, 1100×850mm, 1250×950mm, and 1400×1100mm, with outputs of 120~450 tons, 150~540 tons, 190~620 tons, 290~840 tons, and 400~1050 tons per hour, respectively.

How much does a 400-ton-per-hour jaw crusher for pebbles cost?

For 400-ton-per-hour jaw crushers for pebbles, different series, specifications, and models have different capacities, energy-saving effects, and environmental performance, resulting in varying economic and environmental benefits for users, and therefore different prices. Generally speaking, for equipment with the same output capacity, in terms of ease of use, service life, and environmental performance, the CJ European version is better, followed by the HD German version, with the PE jaw crusher being more common. In terms of price, the PE series is cheaper, the HD German version is slightly more expensive, and the CJ European version is the most expensive.
